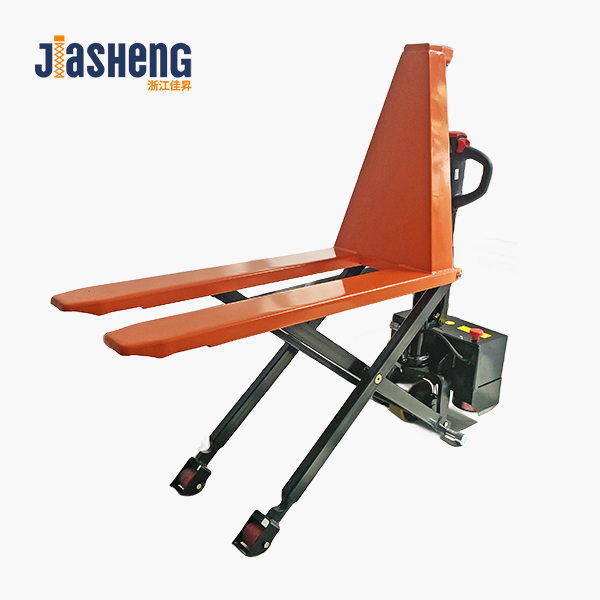

CONTACT USAutomatically Walking High Lift Pallet Truck：EEHPT-Ⅰ
we can accept the diversified needs of customers and make customized products. Our products are not only sold in China and Asia, but also exported to Europe, America, Africa and other countries and regions.
Features:
This product combines the functions of ordinary hydraulic truck and lifting platform, which can be used for daily work of bearing heavy objects and carrying goods.
Advantages:
- When the fork is raised to 420mm, it automatically adjusts the stabilizer to contact the ground to ensure smoothness and braking of the vehicle.
- The EEHPT-I high lift pallet truck adopts the maintenance-free startup battery called VARTA from Johnson Auto Control of the United States to save maintenance time and cost. It also has built-in charger with a electric quantity indicator and a low voltage alarm lamp.
Standard:
This product conforms to EN1757-4.
| Model |
EEHPT-Ⅰ |
| Capacity (kg) |
1000 |
1000 |
1500 |
1500 |
| Fork Width (mm) |
540 |
680 |
540 |
680 |
| Fork Length (mm) |
1150 |
1150 |
1150 |
1150 |
| Minimum Lifting Height (mm) |
85 |
85 |
85 |
85 |
| Maximum Lifting Height (mm) |
800 |
800 |
800 |
800 |
| Lifting Dynamic Parameter |
24V/50Hz,1.2Kw |
24V/50Hz,1.2Kw |
24V/50Hz,1.2Kw |
24V/50Hz,1.2Kw |
| Mobile Dynamic Parameter |
24V/50Hz,0.75Kw |
24V/50Hz,0.75Kw |
24V/50Hz,0.75Kw |
24V/50Hz,0.75Kw |
| Battery Voltage (V) |
24 |
24 |
24 |
24 |
| Battery Capacity(h) |
50 |
50 |
50 |
50 |
| Input Voltage of Charger (V) |
220-240 |
220-240 |
220-240 |
220-240 |
| Output Voltage of Charger (V) |
24 |
24 |
24 |
24 |
