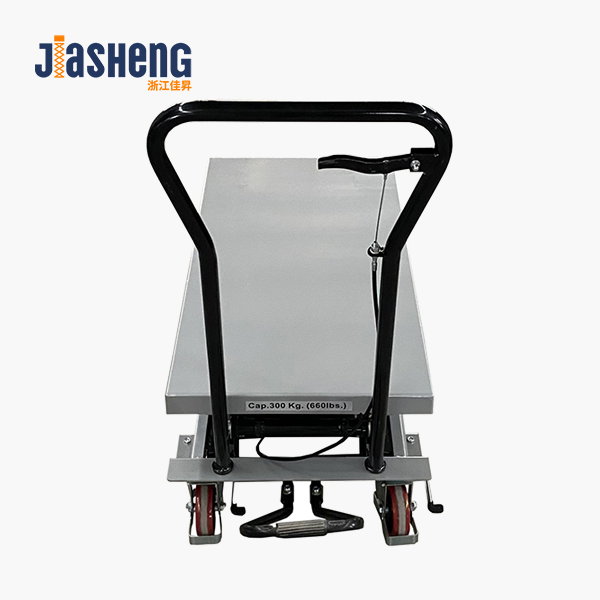

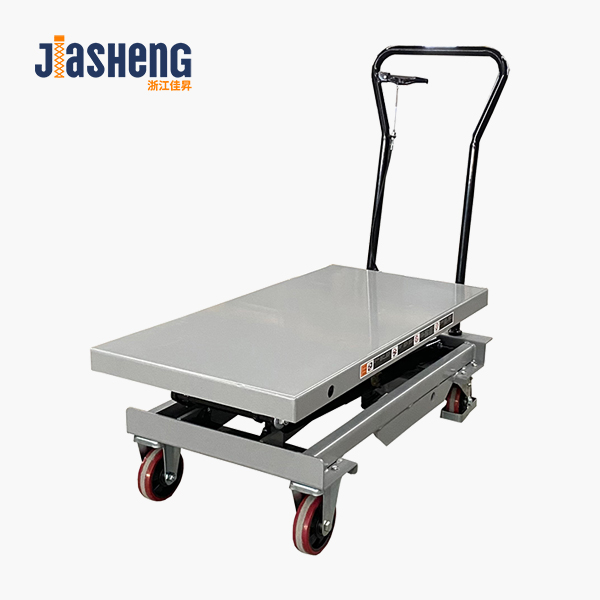

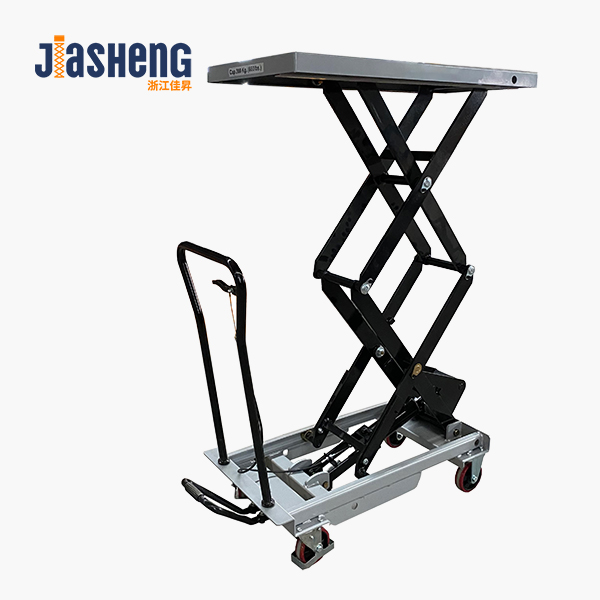

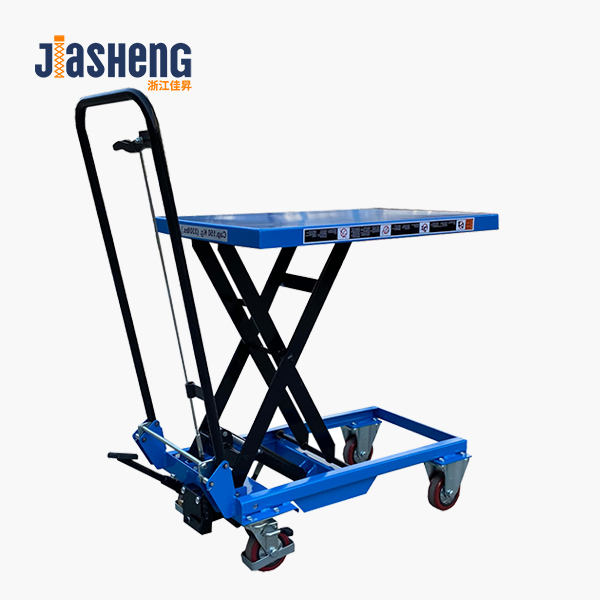

CONTACT USBS series of Manual Mobile Lifting Table
we can accept the diversified needs of customers and make customized products. Our products are not only sold in China and Asia, but also exported to Europe, America, Africa and other countries and regions.
- Features:
It’s suitable for maintenance workshops, production workshops, packaging line and other workshops.
- Advantages:
Its wheels come with protective frames to prevent crush injury and it uses anti - clamping fork design to prevent clamping injury. It also has overload protection function which is safer.
- Standard:
This product conforms to EN1757-2 and ANSI/ASME.
| Model |
Capacity |
Scissors Fork |
Platform Size |
Minimum
Lifting Height |
Maximum
Lifting Height |
Diameter |
Self-weight |
| BS15 |
150kg |
Single |
700x450 |
265mm |
755mm |
Φ100mm |
41kg |
| BS25 |
250kg |
Single |
830x500 |
330mm |
910mm |
Φ125mm |
78kg |
| BS50 |
500kg |
Single |
1010x520 |
435mm |
1000mm |
Φ150mm |
112kg |
| BS75 |
750kg |
Single |
1010x520 |
442mm |
1000mm |
Φ150mm |
112kg |
| BS100 |
1000kg |
Single |
1010x520 |
445mm |
950mm |
Φ150mm |
130kg |
| BS15D |
150kg |
Double |
830x500 |
435mm |
1430mm |
Φ125mm |
90kg |
| BS30D |
300kg |
Double |
1010x520 |
435mm |
1585mm |
Φ125mm |
137.5kg |
| BS50D |
500kg |
Double |
1010x520 |
440mm |
1575mm |
Φ150mm |
156kg |
| BS80D |
800kg |
Double |
1010x520 |
470mm |
1410mm |
Φ150mm |
160kg |
LEAVE A MESSAGE
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Our company has been adhering to innovation, has a number of product patents, inventing a variety of Electric Lifting Platform (such as Stationary Lifting Platform, Mobile Lifting Platform, Shear-fork Type Lifting Platform, etc), Aerial Work Platform, Aluminum Alloy Lifter, Mobile Platforms and different kinds of Pallet Trucks (such as Shear-fork Type Pallet Truck, Electric Pallet Truck, Self-induction Electric Pallet Truck, Stainless Pallet Truck, etc.) and so on.
