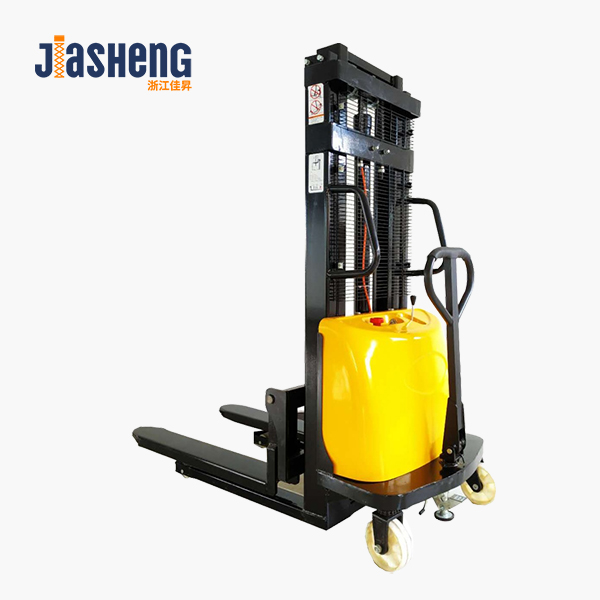

CONTACT USElectric Forklift
we can accept the diversified needs of customers and make customized products. Our products are not only sold in China and Asia, but also exported to Europe, America, Africa and other countries and regions.
Technical Parameters of Manual Hydraulic Forklift ：
|
Model
|
CDD10
|
CDD15
|
CDD20
|
|
Rated Load
|
1000Kg
|
1500Kg
|
2000Kg
|
|
Lifting Height
|
1600/2500/3100mm
|
1600/2500/3100mm
|
1600/2500/3100mm
|
|
Load Center
|
400mm
|
400mm
|
400mm
|
|
Total Height
（When the Fork is in the lowest position）
|
2080/1840/2150mm
|
2080/1840/2150mm
|
2080/1840/2150mm
|
|
Total Length
|
1820mm
|
1820mm
|
1820mm
|
|
Total Width
|
800mm
|
800mm
|
800mm
|
|
Radius of Turning Circle
|
1315mm
|
1315mm
|
1315mm
|
|
Size of Double Front Wheels
|
80*70mm
|
80*70mm
|
80*70mm
|
|
Outside width of the Fork
|
680mm
|
680mm
|
680mm
|
|
Size of Single Fork
|
1050*160*55mm
|
1050*160*55mm
|
1050*160*55mm
|
|
Minimum Height of the Fork
|
80mm
|
80mm
|
80mm
|
|
Minimum Ground Clearance
|
20mm
|
20mm
|
20mm
|
|
Lifting Speed (Full-load/No-load)
|
85/100mm/s
|
85/100mm/s
|
85/100mm/s
|
|
Descending Speed (Full-load/No-load)
|
Manual Control
|
|
Brake Mode
|
Footbrake
|
|
Storage Battery（Optional）
|
DC12V,120/150Ah
|
|
Parameters of the Charger
|
12/20 V/A
|
|
Parameters of the pump station
|
DC12V,1.6Kw
|
LEAVE A MESSAGE
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Our company has been adhering to innovation, has a number of product patents, inventing a variety of Electric Lifting Platform (such as Stationary Lifting Platform, Mobile Lifting Platform, Shear-fork Type Lifting Platform, etc), Aerial Work Platform, Aluminum Alloy Lifter, Mobile Platforms and different kinds of Pallet Trucks (such as Shear-fork Type Pallet Truck, Electric Pallet Truck, Self-induction Electric Pallet Truck, Stainless Pallet Truck, etc.) and so on.
