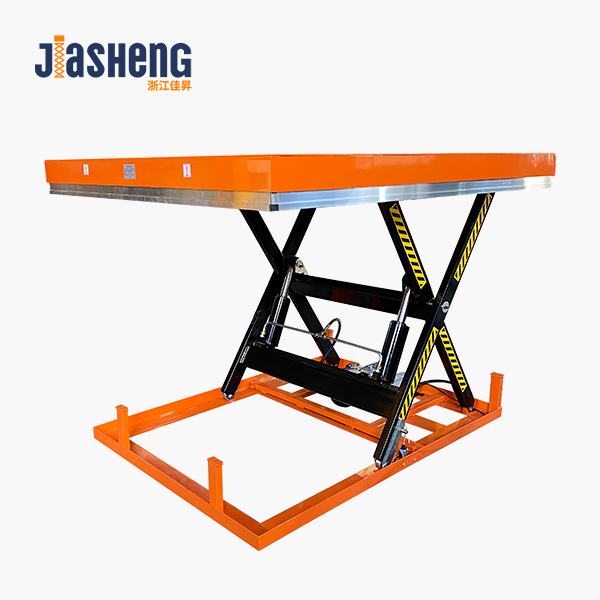

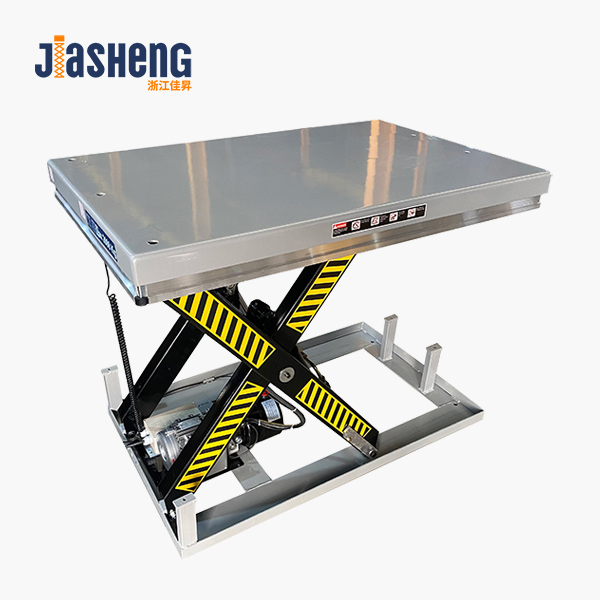

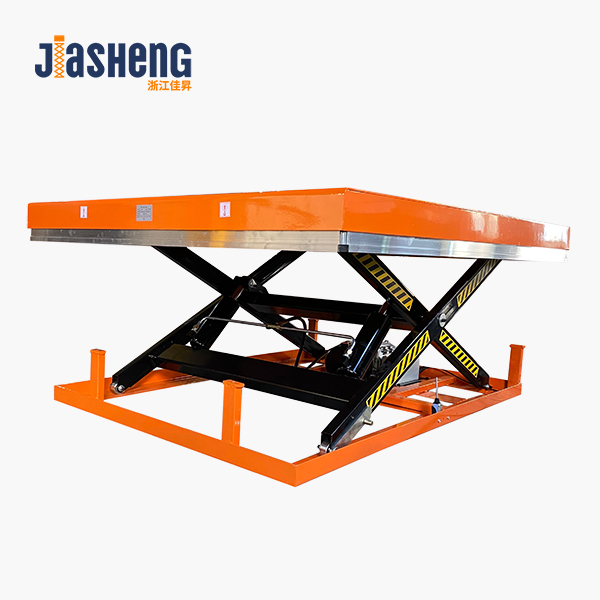

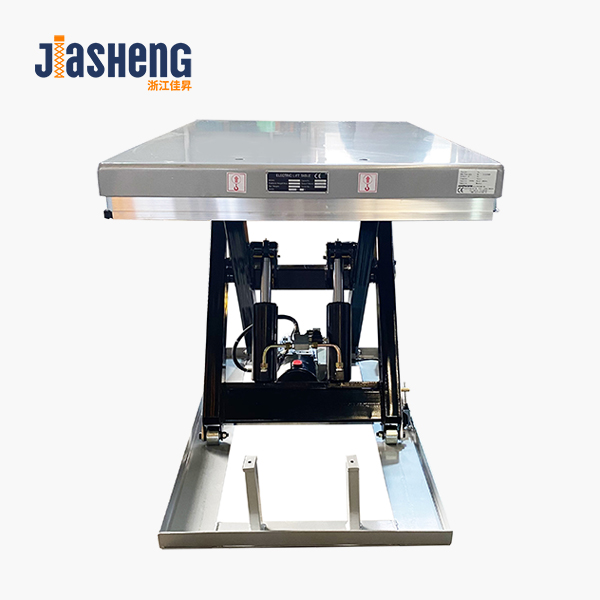

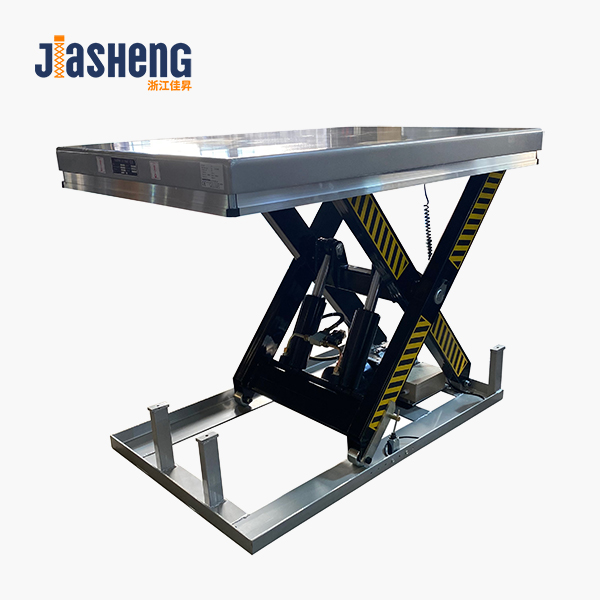

HW series of Shear-fork Type Electric Lifting Platform

we can accept the diversified needs of customers and make customized products. Our products are not only sold in China and Asia, but also exported to Europe, America, Africa and other countries and regions.

  • PRODUCT DETAILS

Features:

  • It adopts heavy-duty design and it’s suitable for maintenance workshops, production workshops, packaging line and other work workshops.
  • It uses anti - clamping fork design to prevent clamping injury. It also has overload protection function which is safer.

Standard:

  • This product conforms to EN1757-2 and ANSI/ASME.

Model Capacity Min Height/
Max Height
Platform
Size
Pedestal
Size
Lifting
Time
Dynamic
Parameter
Self-weight
HW501 500kg 160/760mm 900x700mm 885x700 15-20sec 380V/50Hz,0.37Kw 130kg
HW1001 1000kg 205/990mm 1300x820mm 1255x680 20-25sec 380V/50Hz,1.1Kw 160kg
HW1002 1000kg 205/990mm 1600x1000mm 1255x680 20-25sec 380V/50Hz,1.1Kw 186kg
HW1003 1000kg 240/1300mm 1700x850mm 1600x680 30-35sec 380V/50Hz,1.1Kw 200kg
HW1004 1000kg 240/1300mm 1700x1000mm 1600x680 30-35sec 380V/50Hz,1.1Kw 210kg
HW1005 1000kg 240/1300mm 2000x850mm 1600x680 30-35sec 380V/50Hz,1.1Kw 212kg
HW1006 1000kg 240/1300mm 2000x1000mm 1600x680 30-35sec 380V/50Hz,1.1Kw 223kg
HW1007 1000kg 240/1300mm 1700x1500mm 1600x1230 30-40sec 380V/50Hz,1.5Kw 365kg
HW1008 1000kg 240/1300mm 2000x1700mm 1700x1600 30-40sec 380V/50Hz,1.5Kw 430kg
HW2001 2000kg 230/1000mm 1300x850mm 1255x785 20-25sec 380V/50Hz,1.5Kw 235kg
HW2002 2000kg 230/1000mm 1600x1000mm 1220x785 20-25sec 380V/50Hz,1.5Kw 268kg
HW2003 2000kg 250/1300mm 1700x850mm 1630x785 25-35sec 380V/50Hz,1.5Kw 289kg
HW2004 2000kg 250/1300mm 1700x1000mm 1600x785 25-35sec 380V/50Hz,1.5Kw 300kg
HW2005 2000kg 250/1300mm 2000x850mm 1600x785 25-35sec 380V/50Hz,1.5Kw 300kg
HW2006 2000kg 250/1300mm 2000x1000mm 1600x785 25-35sec 380V/50Hz,1.5Kw 315kg
HW2007 2000kg 250/1400mm 1700x1500mm 1660x1235 25-35sec 380V/50Hz,1.5Kw 415kg
HW2008 2000kg 250/1400mm 2000x1800mm 1900x1420 25-35sec 380V/50Hz,1.5Kw 500kg
HW4001 4000kg 300/1400mm 1700x1200mm 1600x930 30-40 380V/50Hz,2.2Kw 375kg
HW4002 4000kg 300/1400mm 2000x1200mm 1600x930 30-40 380V/50Hz,2.2Kw 405kg
HW4003 4000kg 300/1400mm 2000x1200mm 1980x930 30-40 380V/50Hz,2.2Kw 470kg
HW4004 4000kg 300/1400mm 2000x1200mm 1980x930 35-40 380V/50Hz,2.2Kw 490kg
HW4005 4000kg 300/1400mm 2000x1200mm 1980x930 35-40 380V/50Hz,2.2Kw 480kg
HW4006 4000kg 300/1400mm 2000x1200mm 1980x930 35-40 380V/50Hz,2.2Kw 505kg
HW4007 4000kg 350/1300mm 1700x1500mm 1665x1430 35-45 380V/50Hz,2.2Kw 570kg
HW4008 4000kg 350/1300mm  2200x1800mm 2050x1520 35-45 380V/50Hz,2.2Kw 655kg
HW6000 6000kg 850/6000mm  1700x1200mm 1600v1030 35-45 380V/50Hz,3Kw 480kg
