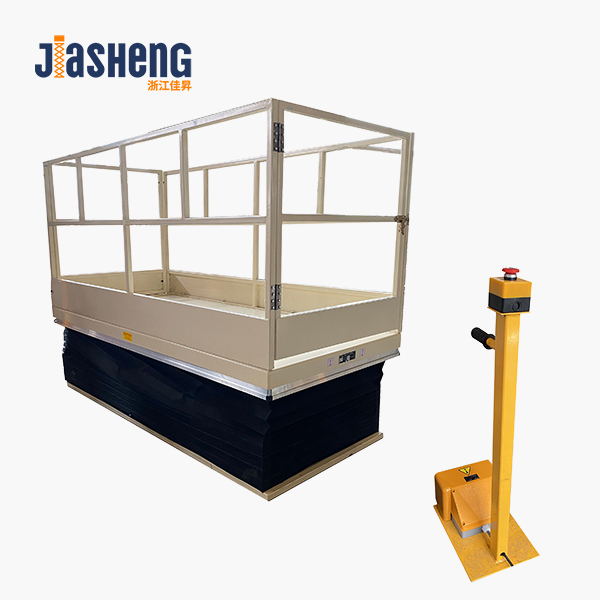

CONTACT USHWH series of Hydraulic Lift Freight Elevator
we can accept the diversified needs of customers and make customized products. Our products are not only sold in China and Asia, but also exported to Europe, America, Africa and other countries and regions.
Features:
- It is suitable for sending and receiving goods in warehouse of multiple levels.
- It has a large carrying capacity, so it is efficient to save time.
- It comes with a guide device to ensure smooth lifting.
- It is easy to install, simple to operate and has excellent quality. It’s the best products for warehouse of multiple levels to replace the elevator.
Standard:
This product conforms to EN1757-2 and ANSI/ASME.
| Model |
Capacity(kg) |
Minimum
Lifting Height(mm) |
Maximum
Lifting Height(mm) |
Platform
Size (mm) |
Vertical
stroke (m) |
Self-weight
(kg) |
| HWH0.2-4 |
200 |
0.742 |
4.742 |
1.1x0.87 |
4 |
620 |
| HWH0.5-4 |
500 |
0.75 |
4.75 |
2.3x0.92 |
4 |
1400 |
| HWH0.9-2.12 |
900 |
0.428 |
2.558 |
1.76x0.84 |
2.12 |
1000 |
| HWH1.0-2.7 |
1000 |
0.45 |
3.15 |
2.5x1.6 |
2.7 |
1800 |
| HWH1.0-3.0 |
1000 |
0.782 |
3.782 |
1.6x1.2 |
3 |
1600 |
| HWH1.0-3.3 |
1000 |
0.632 |
3.932 |
1.38x1.08 |
3.3 |
920 |
| HWH1.0-4.0 |
1000 |
0.755 |
4.755 |
2.2x1.8 |
4 |
1900 |
| HWH1.0-4.8 |
1000 |
0.782 |
5.582 |
2.0x1.5 |
4.8 |
2000 |
| HWH1.0-6.3 |
1000 |
0.836 |
7.136 |
3.0x2.385 |
6.3 |
3280 |
| HWH1.0-7.9 |
1000 |
0.984 |
8.884 |
2.2x1.8 |
7.9 |
3100 |
| HWH1.8-2.12 |
1800 |
0.44 |
2.56 |
1.76x0.84 |
2.12 |
1200 |
| HWH2.0-2.7 |
2000 |
0.643 |
3.343 |
1.6x1.4 |
2.7 |
1300 |
| HWH2.0-3.7 |
2000 |
0.616 |
4.316 |
2.0x1.2 |
3.7 |
1300 |
| HWH2.0-4.2 |
2000 |
0.967 |
5.167 |
1.65x1.5 |
4.2 |
1800 |
| HWH2.0-4.5 |
2000 |
0.85 |
5.35 |
2.5x2.2 |
4.5 |
3300 |
| HWH2.0-6.3 |
2000 |
0.918 |
7.218 |
2.8x2.0 |
6.3 |
3400 |
| HWH3.0-4.5 |
3000 |
0.85 |
5.35 |
2.4x1.26 |
4.5 |
300 |
| HWH3.0-6.3 |
3000 |
1.14 |
7.44 |
4.5x1.5 |
6.3 |
5000 |
| HWH3.0-6.4 |
3000 |
0.91 |
7.31 |
7.0x4.0 |
6.4 |
8500 |
