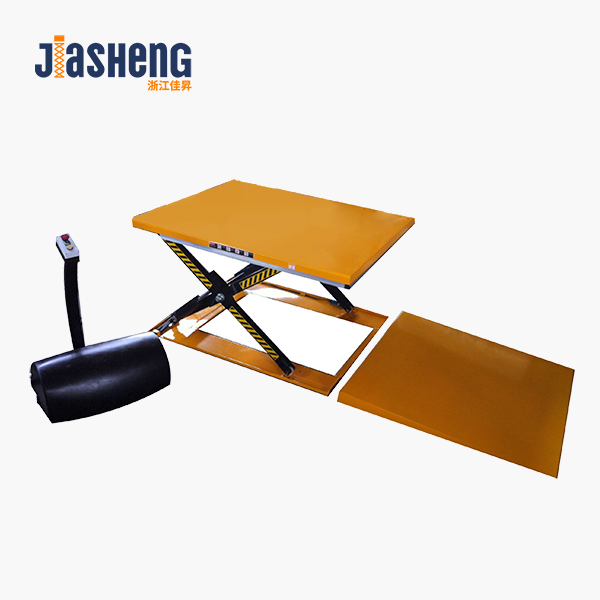

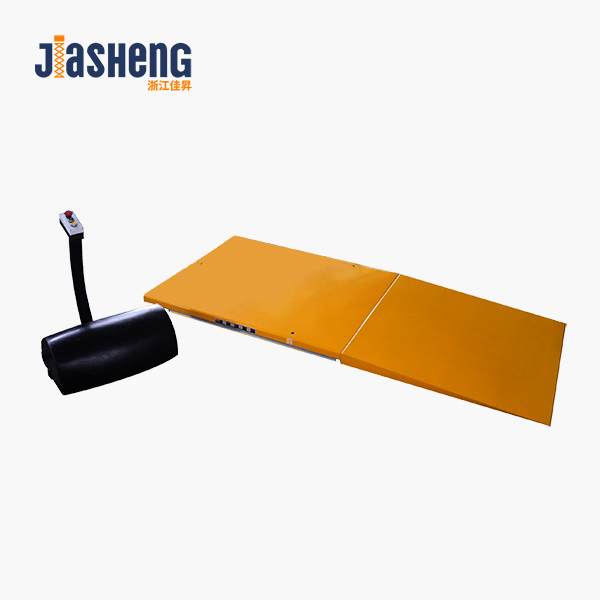

CONTACT USHY series of Ultra-low Electric Lifting Platform
we can accept the diversified needs of customers and make customized products. Our products are not only sold in China and Asia, but also exported to Europe, America, Africa and other countries and regions.
Features:
- It is suitable for warehousing, logistics, manufacturing and other goods transport workshop.
- It is equipped with imported high quality pump station, so that the cargo can be lifted more smoothly and powerfully.
- It uses anti - clamping fork design to prevent clamping injury. It also has overload protection function which is safer.
- It is equipped with aluminum safety barrier strip under the table. When the table falls and meets obstacles, it will automatically stop falling to ensure safety.
- It is equipped with safety wedges for easy maintenance.
Standard:
- This product conforms to EN1757-2 and ANSI/ASME.
| Model |
Capacity |
Minimum Lifting Height |
Maximum Lifting Height |
Platform Size |
Self-weight |
| HY1001 |
1000kg |
85mm |
860mm |
1450x1140 |
357kg |
| HY1002 |
1000kg |
85mm |
860mm |
1600x1140 |
364kg |
| HY1003 |
1000kg |
85mm |
860mm |
1450x800 |
326kg |
| HY1004 |
1000kg |
85mm |
860mm |
1600x800 |
332kg |
| HY1005 |
1000kg |
85mm |
860mm |
1600x1000 |
352kg |
| HY1501 |
1500kg |
105mm |
870mm |
1600x800 |
302kg |
| HY1502 |
1500kg |
105mm |
870mm |
1600x1000 |
401kg |
| HY1503 |
1500kg |
105mm |
870mm |
1600x1200 |
415kg |
| HY2001 |
2000kg |
105mm |
870mm |
1600x1200 |
419kg |
| HY2002 |
2000kg |
105mm |
870mm |
1600x1000 |
405kg |
LEAVE A MESSAGE
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Our company has been adhering to innovation, has a number of product patents, inventing a variety of Electric Lifting Platform (such as Stationary Lifting Platform, Mobile Lifting Platform, Shear-fork Type Lifting Platform, etc), Aerial Work Platform, Aluminum Alloy Lifter, Mobile Platforms and different kinds of Pallet Trucks (such as Shear-fork Type Pallet Truck, Electric Pallet Truck, Self-induction Electric Pallet Truck, Stainless Pallet Truck, etc.) and so on.
