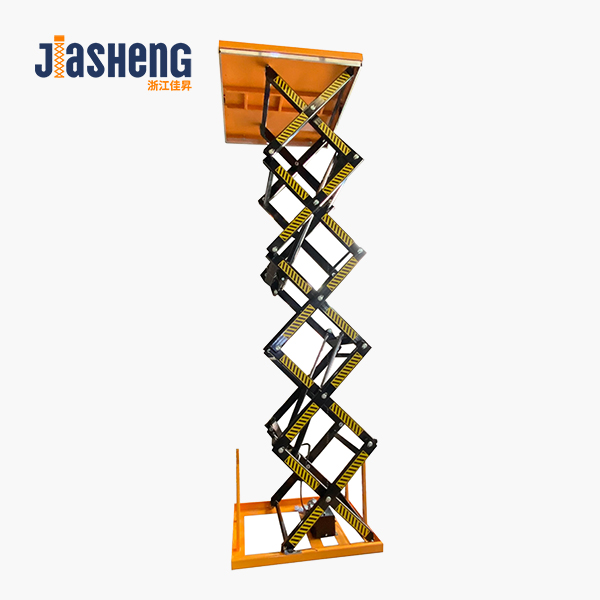

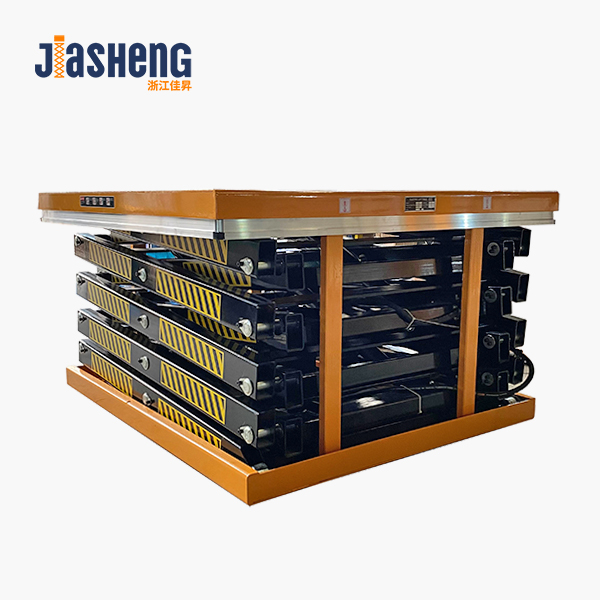

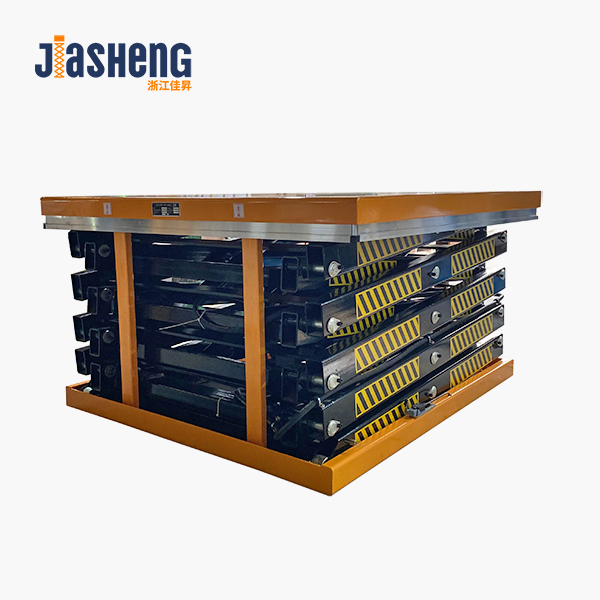

CONTACT USMulti-fork Electric Lifting Platform
we can accept the diversified needs of customers and make customized products. Our products are not only sold in China and Asia, but also exported to Europe, America, Africa and other countries and regions.
Features:
- It adopts heavy-duty design and it’s suitable for maintenance workshops, production workshops and other work workshops.
Advantages:
- It is equipped with imported high quality pump station, so that the cargo can be lifted more smoothly and powerfully.
- It is equipped with safety gear under the table, when the table falls and meets obstacles, it will automatically stop falling to ensure safety.
- It uses anti - clamping fork design to prevent clamping injury. It also has overload protection function which is safer.
- It is equipped with safety wedges for easy maintenance.
Standard:
- This product conforms to EN1757-2 and ANSI/ASME.
| Model |
HW1000M |
| Capacity |
1000kg |
| Minimum Lifting Height |
850mm |
| Maximum Lifting Height |
6000mm |
| Platform Size |
1700x1000 |
| Pedestal Size |
1700x1000 |
| Lifting Time |
95sec |
| Dynamic Parameter |
380V/50Hz，2.2Kw |
| Self-weight |
850kg |
