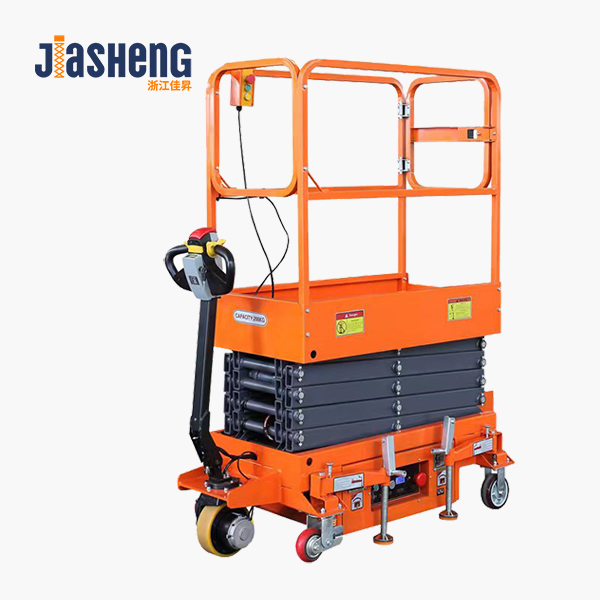

CONTACT USSef Series Of Semi-Electric Shear-Fork Type Mobile Lifting Platform
we can accept the diversified needs of customers and make customized products. Our products are not only sold in China and Asia, but also exported to Europe, America, Africa and other countries and regions.
| Model |
SEF0.3-1.8 |
SEF0.3-3.0 |
SEF0.3-3.9 |
SEF0.2-4.7 |
| Max. lifting height |
1800mm |
3000mm |
3900mm |
4700mm |
| Min. lifting height |
550mm |
650mm |
750mm |
850mm |
| Table size |
1150×600 mm |
| Capacity |
300kg
|
200kg |
| Lifting time |
11s |
35s |
41s |
46s |
| Lowering time |
8s |
25s |
29s |
36s |
| Motor voltage and power |
12/0.8V/kw |
| Voltage and current of the charger |
12/15V/A) |
| Whole length |
1300mm |
| Whole width |
760mm |
| Whole height |
1640mm |
1720mm |
1800mm |
1900mm |
| Self-weight |
360kg |
390kg |
450kg |
480kg |
NOTE: Models 3.9 meters and above are equipped with legs. Customers can choose to install a power assist to drive the platform walking.
