CONTACT USYarn Roller Car
we can accept the diversified needs of customers and make customized products. Our products are not only sold in China and Asia, but also exported to Europe, America, Africa and other countries and regions.

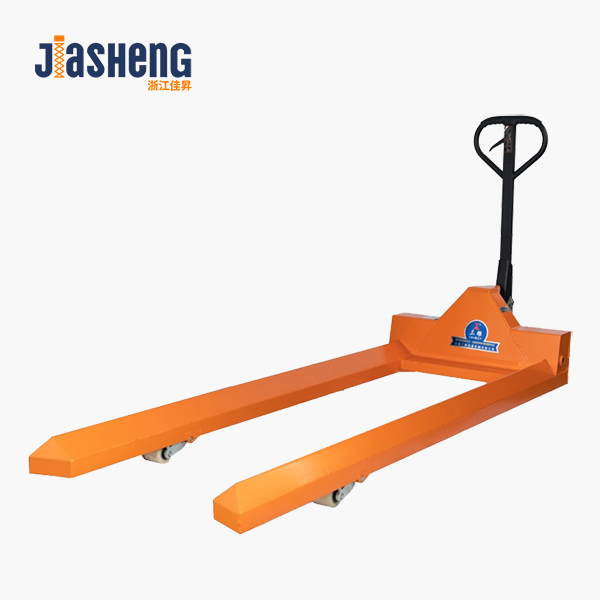

Technical Parameters of Manual Hydraulic Yarn Roller Car:
|
Units（Capacity：kg Length：mm)
|
|
Model
|
3T
|
3T
|
3T
|
3T
|
3T
|
|
Length of the Fork
|
1200mm
|
1800mm
|
2100mm
|
2300mm
|
2600mm
|
|
The Outside Width of the Fork
|
850mm
|
|
The Inside Width of the Fork
|
570mm
|
|
Pallet Dia.
|
800mm
|
|
The Height at which the Fork is lowered
|
145mm（It can be customized according to requirements of the customer.）
|
|
Center Distance of Carrying Goods
|
800mm
|
800mm
|
950mm
|
1050mm
|
1200mm
|
|
Steering Wheel (Rear Wheel)
|
180*50
|
|
Bearing Wheel (Front Wheel)
|
80*70mm
|
|
Lifting Stroke
|
110mm
|
|
Lifting Speed
|
11/at a time
|
|
Descending Speed
|
Controllable
|
|
The Length,Width and Height of the Whole Car
|
1680*850*1230mm
|
2280*850*1230mm
|
2580*850*1230mm
|
2780*850*1230mm
|
3080*850*1230mm
|
|
N.W. (kg)
|
80
|
113
|
131
|
143
|
161
|
LEAVE A MESSAGE
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Our company has been adhering to innovation, has a number of product patents, inventing a variety of Electric Lifting Platform (such as Stationary Lifting Platform, Mobile Lifting Platform, Shear-fork Type Lifting Platform, etc), Aerial Work Platform, Aluminum Alloy Lifter, Mobile Platforms and different kinds of Pallet Trucks (such as Shear-fork Type Pallet Truck, Electric Pallet Truck, Self-induction Electric Pallet Truck, Stainless Pallet Truck, etc.) and so on.
